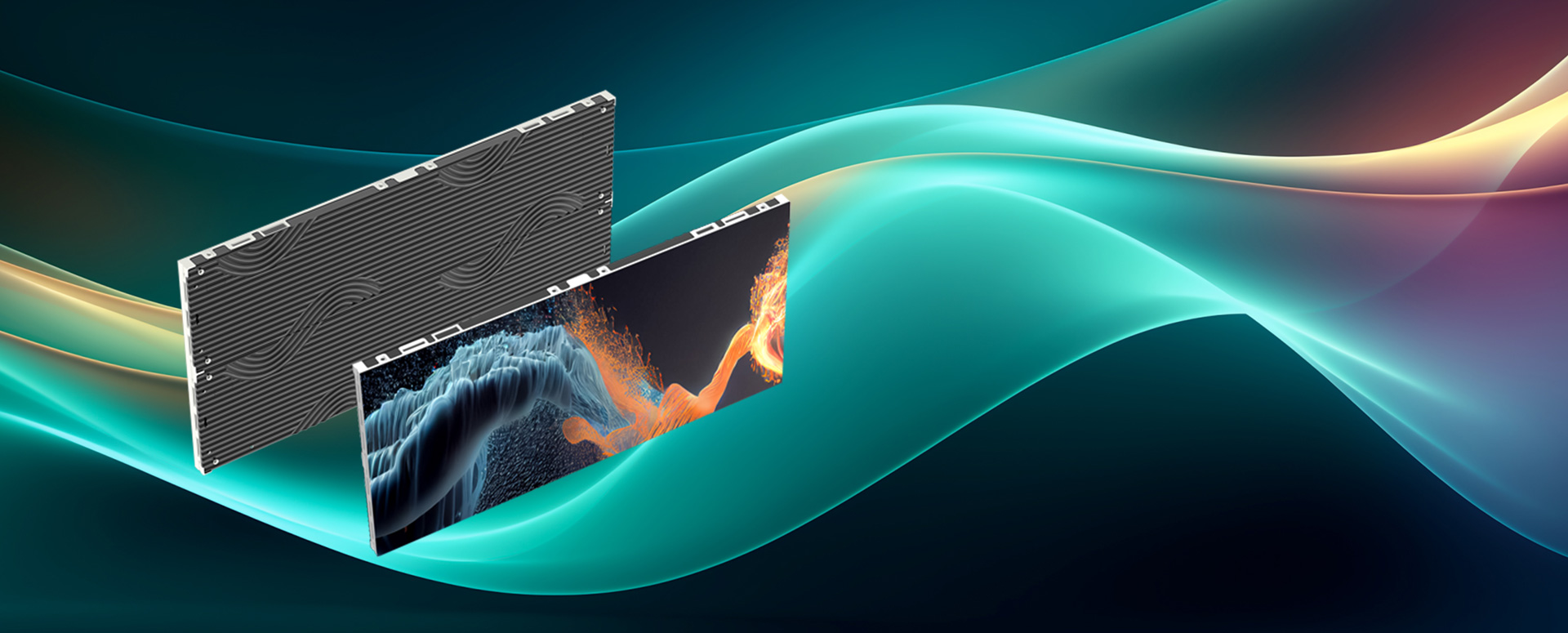

Advant Series
Product Size

Optional 500*250mm panel can meet the needs for any sizes, splicing with the standard 1000*500mm panel. Optional 500*250mm and 1000*500mm can be connected vertically.

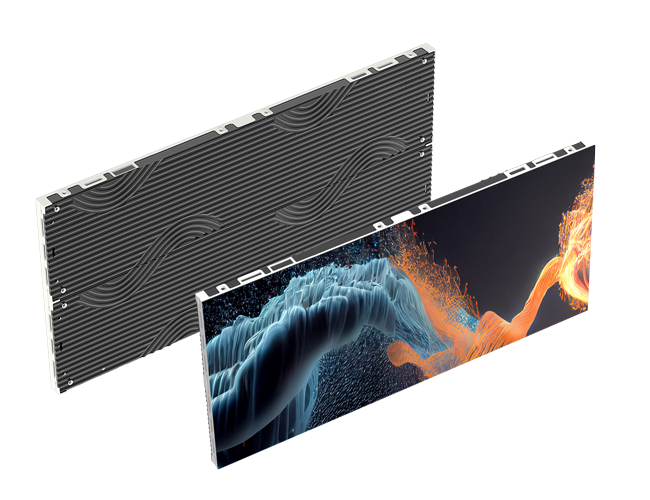

Advant Series

The Advant series, for all commercial display applications, is available in 1.2mm, 1.5mm, 1.9mm, 2.5mm, 2.6mm, 2.9mm and 3.9mm pixel pitches.

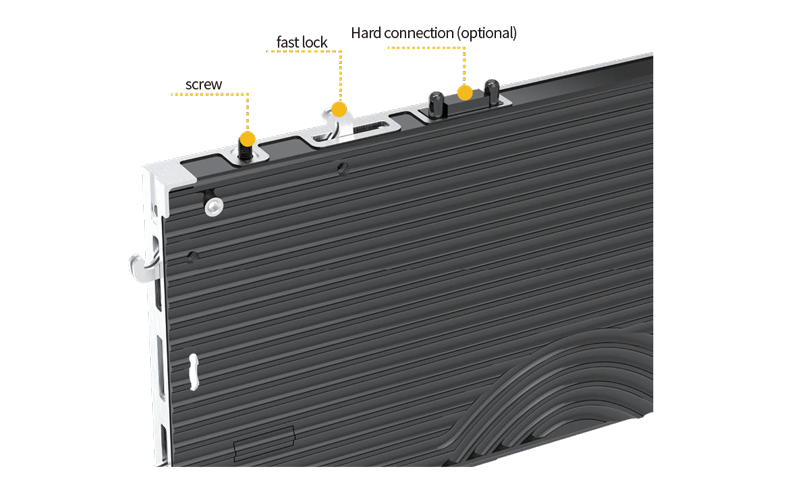

Neat Cabling, Simple Operations

Utilize ethernet for signals, hard connection for power-straightforward, easy, convenient.Fast lock and screw make the installation more convenient and fast. Precision die-casting aluminum cabinet achieves ultra-high flaness through CNC precision machining.

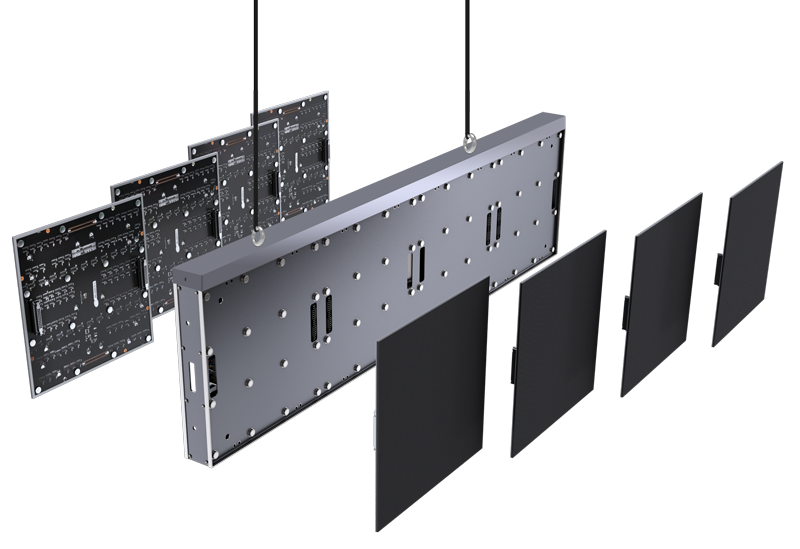

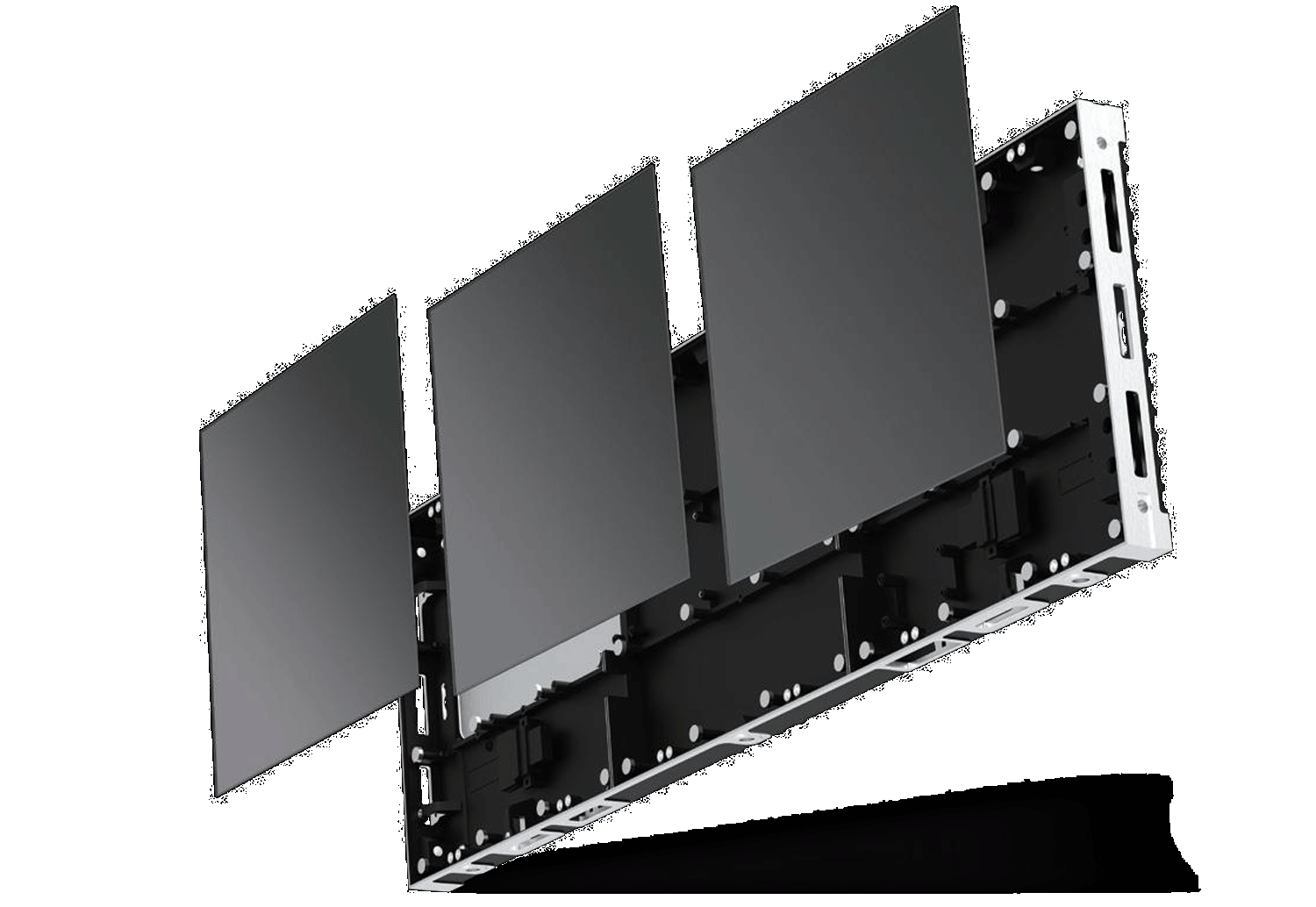

Fully Front Maintenance

Supporting fully front maintenance with vacuum tools for easy operation and assembly, requires no special maintenance channels.

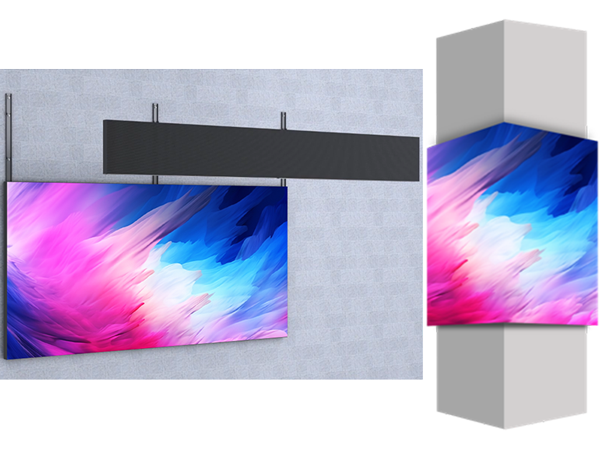

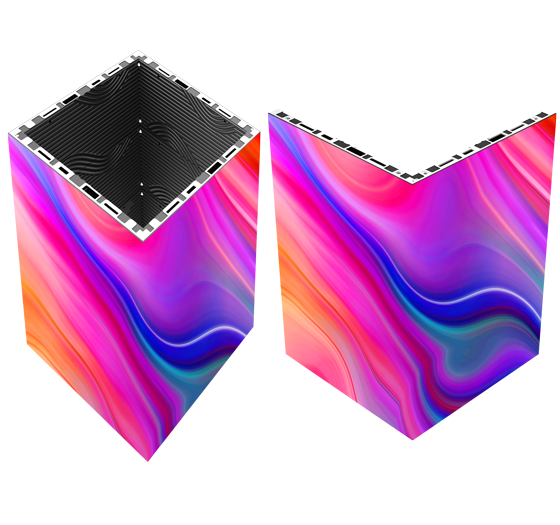

L-Shaped Corners for Versatile Styling

Unleash creativity with our unique L-shaped corner design. it enables versatile styling, including column wrapping, catering to different display needs.

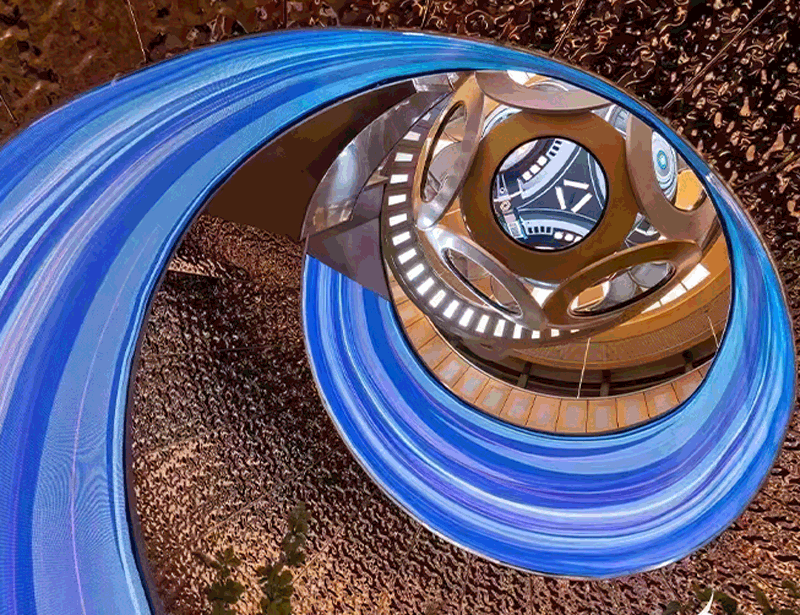

Case Study
Specifications
Advant Series
P1.25
P1.56
P1.95
P2.5
P2.6
P2.9
P3.91
  • Pixel pitch
  • LED Type
  • Physical density (dots/sqm)
  • Module resolution (dots)
  • Module dimension (mm)
  • Panel size (mm)
  • Module quantity (wxh)
  • Panel resolution (dots)
  • Maintenance
  • Cabinet material
  • Brightness (nits)
  • Color temperature (k)
  • Viewing angle (v/h)
  • Color uniformity
  • Contrast ratio
  • Frame frequency
  • Gray level
  • Max. power consumption (w/sqm)
  • Avg. power consumption (w/sqm)
  • Working temperature/humidity (°C/RH)
  • Storage temperature/humidity (°C/RH)
  • Certificate
  • P1.25
  • SMD1010
  • 640000
  • 200X200
  • 250X250
  • 1000x500x33 / 500x500x33
  • 4X2 / 2X2
  • 800x400 / 400x400
  • Front access
  • Die-cast aluminum
  • ≥600
  • 3200-9300 Optional
  • 160°/160°
  • ≥97%
  • 10000 : 1
  • 50/60Hz
  • 14~16 bit
  • 350
  • 100-200
  • -20~60℃/10%~85%
  • -20~60℃/10%~85%
  • CCC/CE/RoHS/FCC/CB/TUV/IEC
  • P1.56
  • SMD1212
  • 409600
  • 160X160
  • 250X250
  • 1000x500x33 / 500x500x33
  • 4X2 / 2X2
  • 640x320 / 320X320
  • Front access
  • Die-cast aluminum
  • ≥600
  • 3200-9300 Optional
  • 160°/160°
  • ≥97%
  • 10000 : 1
  • 50/60Hz
  • 14~16 bit
  • 350
  • 100-200
  • -20~60℃/10%~85%
  • -20~60℃/10%~85%
  • CCC/CE/RoHS/FCC/CB/TUV/IEC
  • P1.95
  • SMD1515
  • 262144
  • 128X128
  • 250X250
  • 1000x500x33 / 500x500x33
  • 4X2 / 2X2
  • 512x256 / 256x256
  • Front access
  • Die-cast aluminum
  • ≥800
  • 3200-9300 Optional
  • 160°/160°
  • ≥97%
  • 10000 : 1
  • 50/60Hz
  • 14~16 bit
  • 350
  • 100-200
  • -20~60℃/10%~85%
  • -20~60℃/10%~85%
  • CCC/CE/RoHS/FCC/CB/TUV/IEC
  • P2.5
  • SMD1515
  • 160000
  • 100X100
  • 250X250
  • 1000x500x33 / 500x500x33
  • 4X2 / 2X2
  • 400x200 / 200x200
  • Front access
  • Die-cast aluminum
  • ≥800
  • 3200-9300 Optional
  • 160°/160°
  • ≥97%
  • 10000 : 1
  • 50/60Hz
  • 14~16 bit
  • 350
  • 100-200
  • -20~60℃/10%~85%
  • -20~60℃/10%~85%
  • CCC/CE/RoHS/FCC/CB/TUV/IEC
  • P2.6
  • SMD1515
  • 147456
  • 96X96
  • 250X250
  • 1000x500x33 / 500x500x33
  • 4X2 / 2X2
  • 384x192 / 192x192
  • Front access
  • Die-cast aluminum
  • ≥800
  • 3200-9300 Optional
  • 160°/160°
  • ≥97%
  • 10000 : 1
  • 50/60Hz
  • 14~16 bit
  • 350
  • 100-200
  • -20~60℃/10%~85%
  • -20~60℃/10%~85%
  • CCC/CE/RoHS/FCC/CB/TUV/IEC
  • P2.9
  • SMD1515
  • 112896
  • 84X84
  • 250X250
  • 1000x500x33 / 500x500x33
  • 4X2 / 2X2
  • 336x168 / 168x168
  • Front access
  • Die-cast aluminum
  • ≥800
  • 3200-9300 Optional
  • 160°/160°
  • ≥97%
  • 10000 : 1
  • 50/60Hz
  • 14~16 bit
  • 350
  • 100-200
  • -20~60℃/10%~85%
  • -20~60℃/10%~85%
  • CCC/CE/RoHS/FCC/CB/TUV/IEC
  • P3.91
  • SMD1515
  • 65536
  • 64X64
  • 250X250
  • 1000x500x33 / 500x500x33
  • 4X2 / 2X2
  • 256x128 / 128x128
  • Front access
  • Die-cast aluminum
  • ≥800
  • 3200-9300 Optional
  • 160°/160°
  • ≥97%
  • 10000 : 1
  • 50/60Hz
  • 14~16 bit
  • 350
  • 100-200
  • -20~60℃/10%~85%
  • -20~60℃/10%~85%
  • CCC/CE/RoHS/FCC/CB/TUV/IEC
