Craft Series
Craft Series

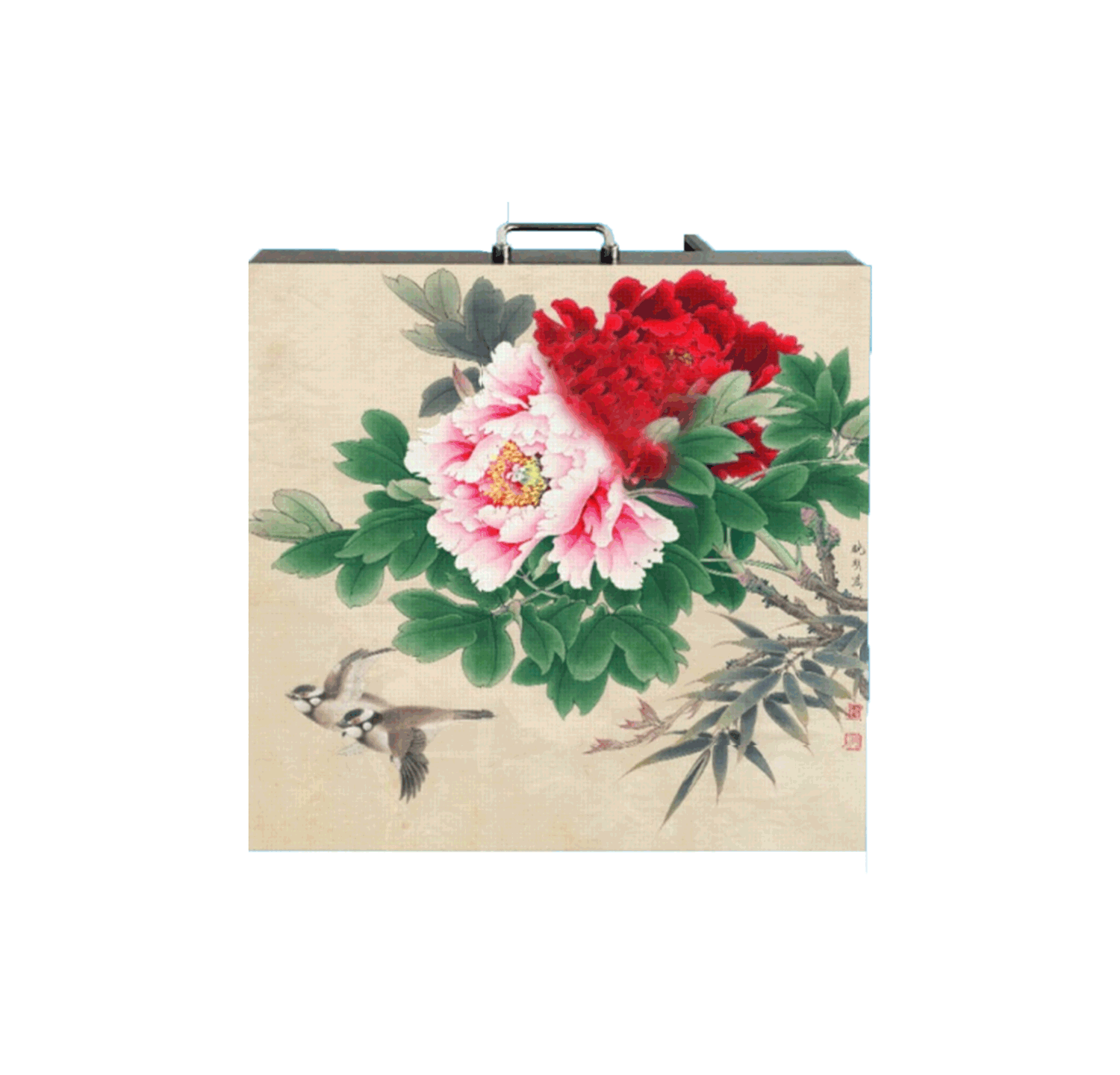

Born from LED screen industry and inspired by interior design, Craft series is evolutionary product for Interior design area and traditional LED screen industry. Surface Painting is anti-humidity, anti-UV, not easy for falling off. It’s widely used in Cultural places, Museum, Retail shop, Offices, etc.



Blend In Subtly And Stand Out Distinctively

When turn off panel, it’s a painting or any texure and can blend in subtly content you want to show.

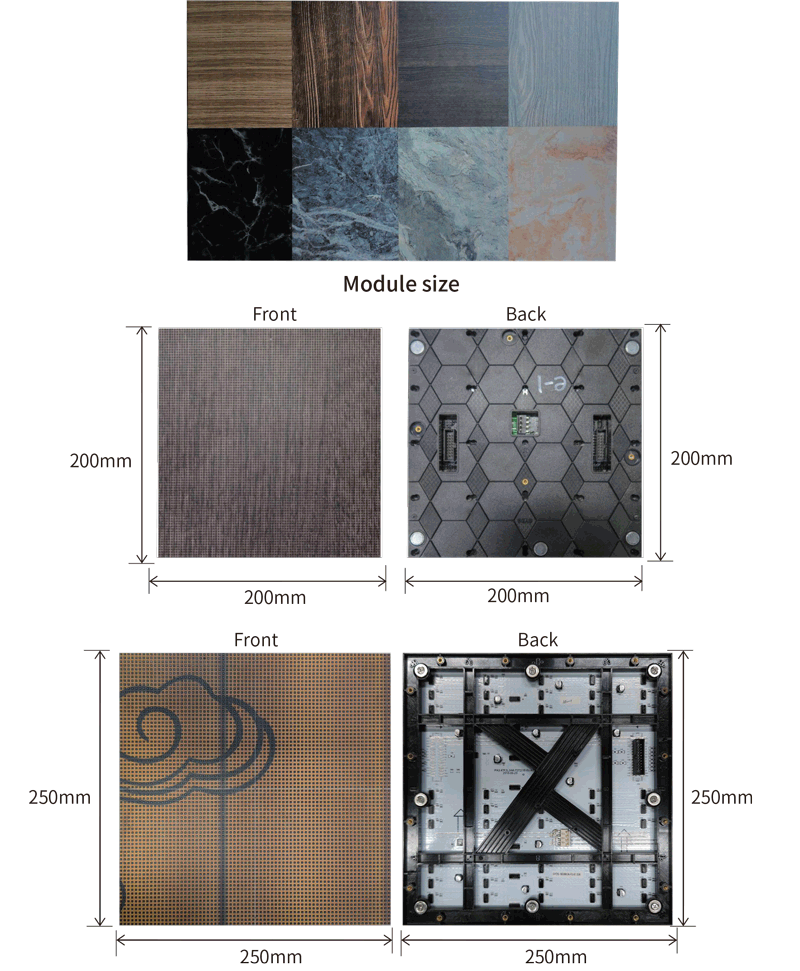

Customized Surface Patterns

With our customizable surface textures, you can make your own visual symphony.





Adjustable Panel Sizes/Shapes


Pixel Pitch Freedom


Limitless Possibilities

Specifications
Craft Series
2.2mm
2.7mm
3.4mm
  • Pixel pitch (mm)
  • LED configuration
  • LED lamp
  • Module size (mm)
  • Module resolution (dots)
  • Scaning method
  • Pixel density (dots/sqm)
  • Brightness (nits)
  • Color temperature
  • Brightness uniformity
  • Color uniformity
  • Grey scale (bit)
  • Contrast ratio
  • Viewing angle (H/V)
  • IP degree
  • Refresh rate
  • Frame rate
  • Brightness control
  • Max. power consumption
  • Avg. power consumption
  • Continous working hours
  • Life time
  • Working temperature
  • Working humidity
  • Storage temperature
  • Storage humidity
  • 2.2mm
  • 1R1G1B (SMD 3in1)
  • SMD1010
  • 200*200mm
  • 90*90dots
  • 1/30
  • 202500dots/sqm
  • ≥600 nits
  • 3200~9300k (adjustable)
  • ≥97%
  • ±0.003， in Cx, Cy
  • 16bit
  • ≥5000:1
  • 160°/160°
  • IP43
  • ≥1920Hz
  • 50/60Hz, 120Hz (3D)
  • Manual/Automatic
  • ≤560W/m2
  • ≤260W/m2
  • ≥7*24hrs
  • ≥100000hrs
  • -10℃~+45℃
  • 10%～90%RH
  • -20℃~+55℃
  • 10%～95%RH
  • 2.7mm
  • 1R1G1B (SMD 3in1)
  • SMD1010
  • 200*200mm
  • 90*90dots
  • 1/30
  • 129600dots/sqm
  • ≥600 nits
  • 3200~9300k (adjustable)
  • ≥97%
  • ±0.003， in Cx, Cy
  • 16bit
  • ≥5000:1
  • 160°/160°
  • IP43
  • ≥1920Hz
  • 50/60Hz, 120Hz (3D)
  • Manual/Automatic
  • ≤560W/m2
  • ≤260W/m2
  • ≥7*24hrs
  • ≥100000hrs
  • -10℃~+45℃
  • 10%～90%RH
  • -20℃~+55℃
  • 10%～95%RH
  • 3.4mm
  • 1R1G1B (SMD 3in1)
  • SMD1515
  • 250*250mm
  • 72*72dots
  • 1/24
  • 82944dots/sqm
  • ≥600 nits
  • 3200~9300k (adjustable)
  • ≥97%
  • ±0.003， in Cx, Cy
  • 16bit
  • ≥5000:1
  • 160°/160°
  • IP43
  • ≥1920Hz
  • 50/60Hz, 120Hz (3D)
  • Manual/Automatic
  • ≤560W/m2
  • ≤260W/m2
  • ≥7*24hrs
  • ≥100000hrs
  • -10℃~+45℃
  • 10%～90%RH
  • -20℃~+55℃
  • 10%～95%RH
